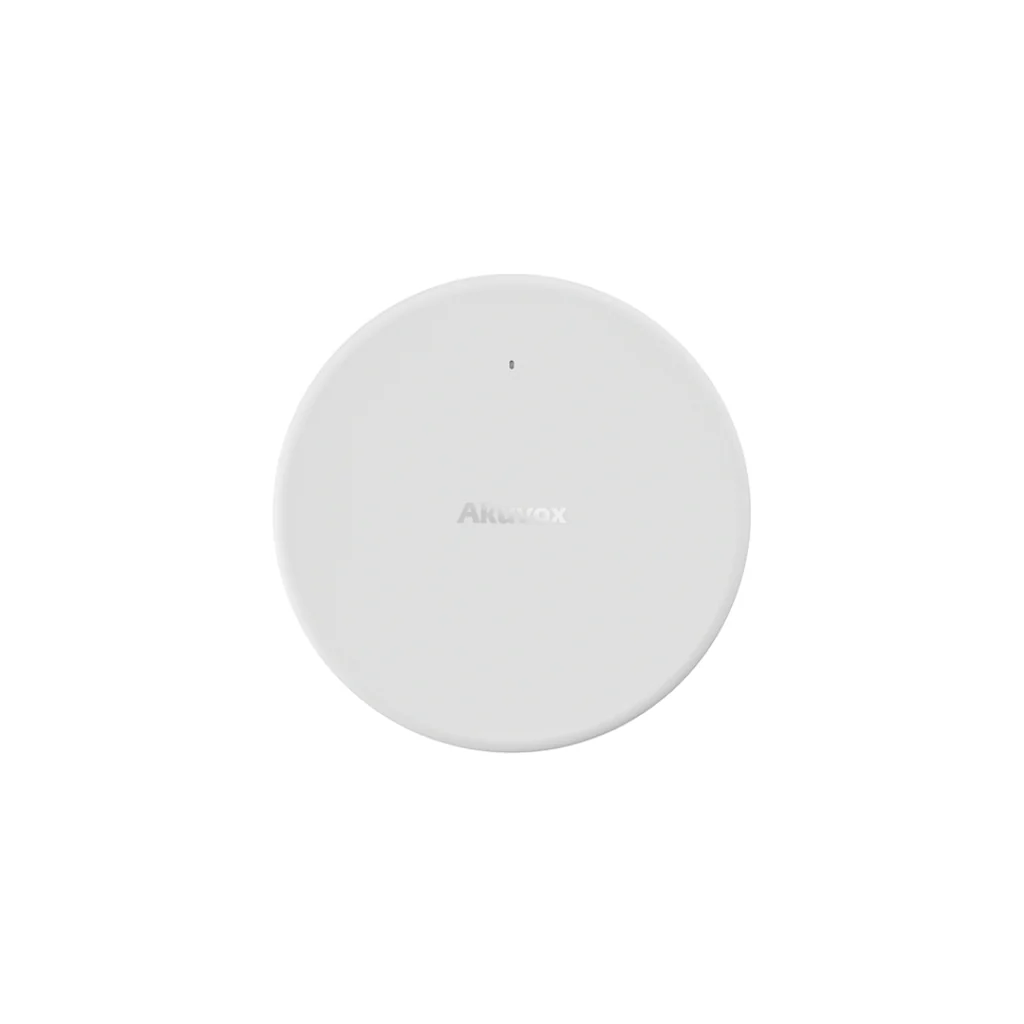

MR03 AI-Powered Vital Sign Monitoring mmWave Radar
1.Core Function: AI mmWave radar with edge computing for senior living; supports fall detection, out-of-bed monitoring, sleep breathing/heart rate monitoring, and emergency two-way intercom.
2.Detection Range: Ceiling mount: 6 m × 4 m; Wall mount: within 140° front field of view, max. 5 m.
3.Radar Parameters: 60 GHz – 61 GHz (1 GHz bandwidth), FMCW modulation, 11 dBm transmit power, 4T4R antenna array.
4.Power & Connectivity: PoE (IEEE 802.3af) or 5 V/2 A via USB Type‑C; Wi‑Fi 802.11 b/g/n; 1× RJ45 port.
5.Audio & Alert: Built‑in mic & speaker for emergency intercom; RF module (433/869/915 MHz optional) for wireless emergency button.
6.Cloud & API: Integrates with Akuvox Cloud for remote management and multi‑channel alerts (app push + phone call); complete API for third‑party platform integration (configuration, alerts, data reporting).
7.Installation & Environment: Wall or ceiling mount; compact Ø110 mm × 24 mm; operating temperature –10 °C ~ +45 °C, humidity 10 % ~ 90 % RH.
